OneWire Utilities: Get the most out of your 1Wire networks

1Wire Development Toolkit

We have designed a flexible and versatile LabVIEW application development toolkit and suite of applications for use of one-wire sensors in whatever environment the user sees fit: data acquisition instrumentation, hobby, general environmental monitoring, or otherwise. We've optimized it for speed on multi-sensor networks and added in examples and help to get you going.

We have used the basic toolkit to create a wide variety of interfaces over the years, in scientific applications as well as for hobbies. Our toolkit and standalone OneWire Monitor executable are in use in a wide variety of industries, including semiconductor manufacture, remote conditions monitoring deployments, and for monitoring drying technologies. Our toolkit employs the TMEX API and includes native function calls, so if your sensor is 1Wire, it will work with OneWire Utilities!

OneWire Utilities Gallery

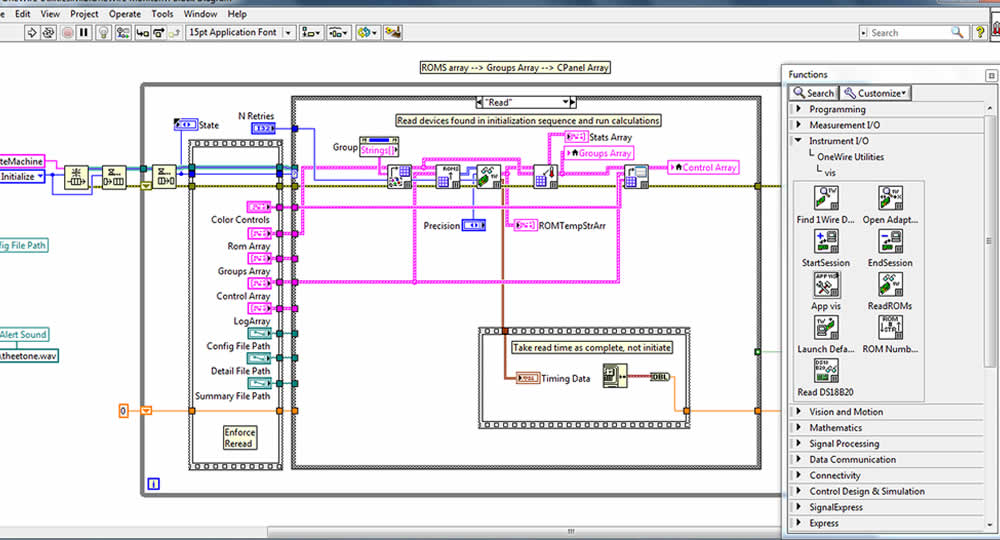

Palettes and block diagram
Palettes and block diagram
OneWire Monitor Application

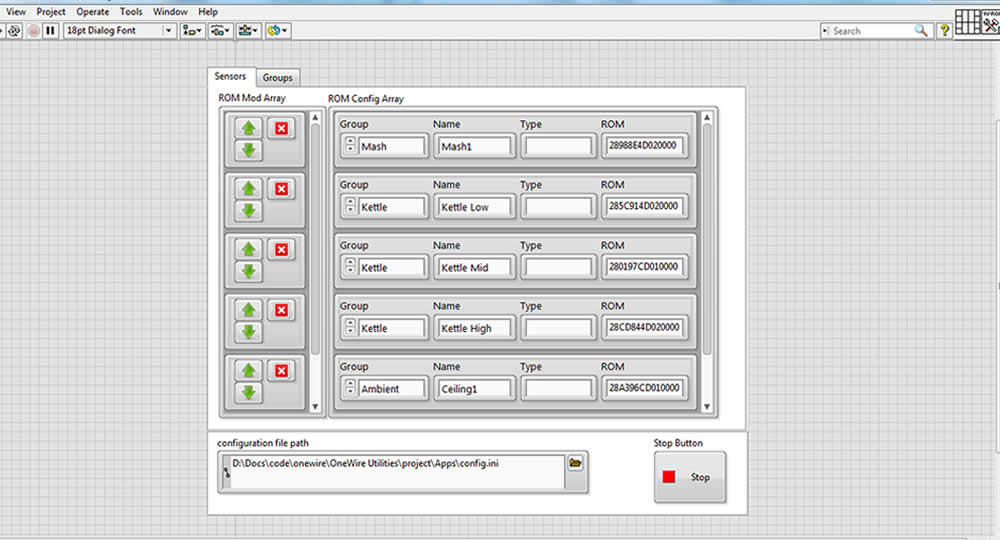

ROM Utilities

Monitor and configure network sensors

Use our ROM utility or palette functions to configure your sensor network. Assign nicknames and group sensors and save into a local .ini file for easy retrieval of multiple configurations. The toolkit comes preconfigured to read a number of sensors from common adapters such as the DS9490 and iButtonLink LinkUSB adapters, and also allows access to the base TMEX API function calls for customized applications. See below for compatible devices.

Build custom applications using included controls and vis

Use our controls and type definitions to put together custom applications for your acquisitions environment. Many examples are included with our toolkit, including a OneWire Monitor and configuration application. We're also happy to help develop your custom acquisition tools.

Standalone Application Executables

The key applications in our ToolKit built as examples have been built into a suite of applications that require only the LabVIEW RunTime development environment (free) to run. This includes:

  • OneWire Monitor
  • DS192X Control Panel
  • Sensor Utility

For more details on these applications, scroll down to their descriptions below.

Each instance requires a RunTime license (available in our web store), and can be easily installed as described here. A 15-day trial is automatically started on install, so you're free to give it a try!

Compatible Devices

Adapters

Dallas/Maxim DS9490, iButtonLink LinkUSB® Adapters, and all other devices based on DS9097E, DS9097U, DS1410 on USB, Parallel, and Serial ports are supported. See here for how to find and select your adapter using the toolkit or executable programs.

Sensors

Native (with base OneWire Utilities package)

  • DS18B20 : Temperature
  • DS2408, DS2413 : Sense and output switch
  • DS2438 : Temperature, current, voltage
  • DS2401 (chip), DS1990A (iButton) : 64-bit serial number
  • DS1922, DS1923 :Thermochron/hygrochron temperature/humidity loggers (base package reads current temperature/humidity only)
  • iButtonLink® MultiSensor devices (see here for app note):
    • MS-T : Temperature Sensor
    • MS-TC : Temperature and AC Current Sensor
    • MS-TH : Temperature and Humidity Sensor
    • MS-TL : Temperature and Light Level Sensor
    • MS-TPD : Temperature and Flow Sensor
    • MS-TV : Temperature and Voltage Sensor

With DS192X Thermochron/Hygrochron module (see modules and DS192X Module below)

  • DS1922, DS1923 : Thermochron/hygrochron temperature/humidity loggers (full datalogging and mission feature set)

With OWU Memory module (see below and downloads page)

  • DS2430A (chip), DS1971 (iButton): 256-bit read/write memory iButton
  • DS2431 (chip), DS1992 (iButton) : 1kb read/write memory iButton
  • MAX31826 : Temperature sensor with 1kb EEPROM (full sensor read and EEPROM read/write)
  • MAX31850 : Thermocouple interface chip
  • DS28EC20 : 20kb EEPROM read/write EEPROM (full EEPROM read/write command set)
  • DS1996 (iButton) : 64kb read/write memory
  • DS1982 : iButton memory with 12V write sequence

All (yes, all) other sensors are supported using native API calls with the Open and Find Devices and other utility vis. Send us an email if you'd like to see advanced support for devices in your application. Chances are we've got some code we can make work for you.

OneWire Monitor Application

Our 1Wire Monitor application offers a standalone executable program that allows you to monitor as many sensors you can read on a 1Wire network. It's what we use around here to monitor our homebrew, while we brew it and after it hits the fermenters! It allows read and grouping of multisensor devices from iButtonLink, as well as multiple values from one device, for example Temperature, Voltage and Current from DS2438 devices.

OneWire Monitor Gallery

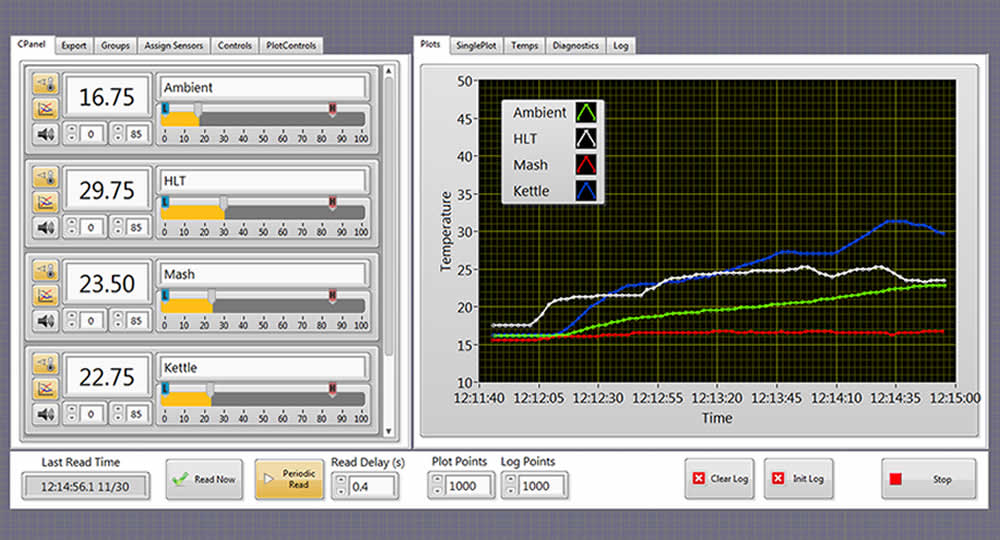

Main Log and Plot

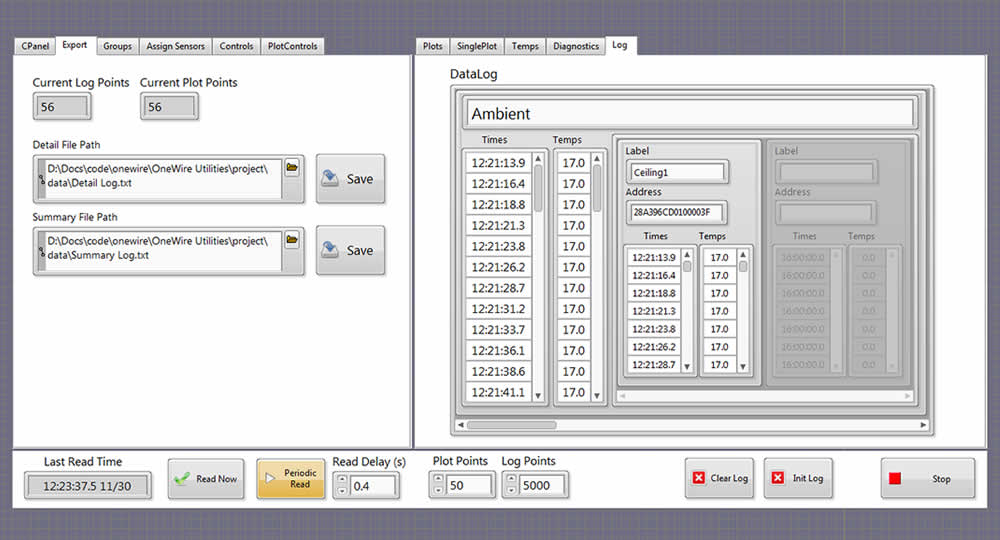

Long-term datalogging

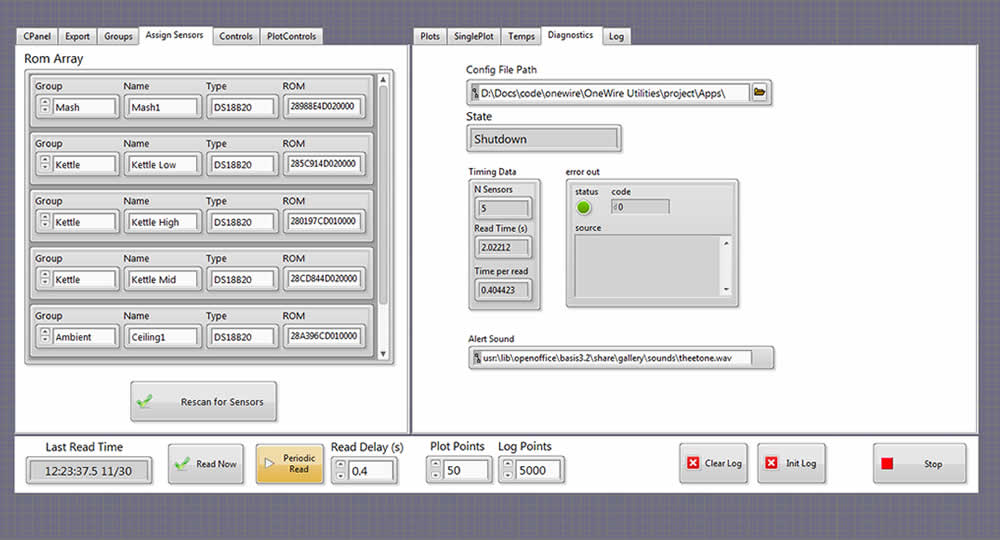

Sensor settings

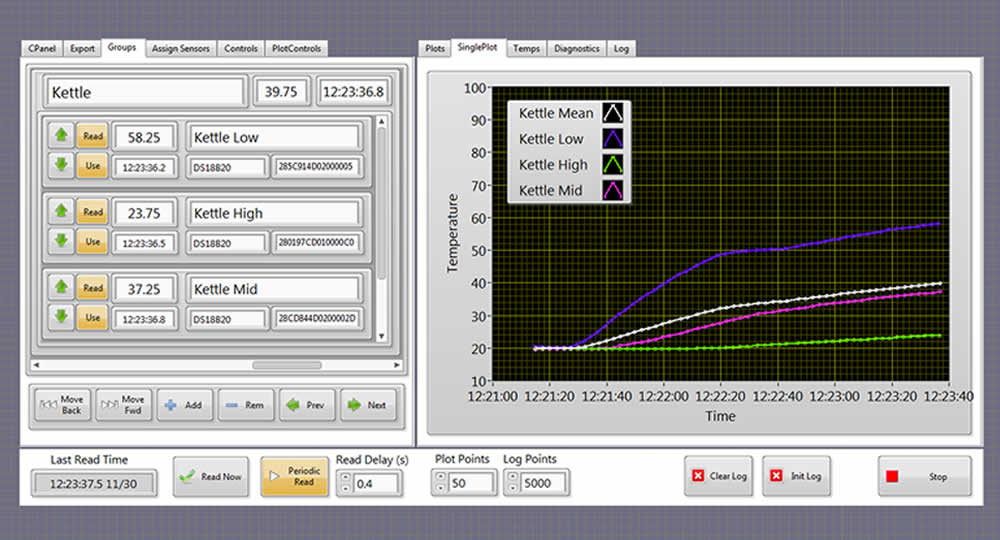

Single detail plots

Group and Assign Sensors for any monitoring application

Use our ROM sensor management features to assign nicknames to your ROMs. Even if you move them around, their unique hardware addresses and your stored nicknames will let you keep track of them. Group them together in your applications to measure positional variation and establish a standard error for your data reporting.

Setpoint and high/low alarms and audio alerts

Use our custom high/low slider controls for your group measurements to alert you visually and by audio alarm and/or Text to Speech if you wish.

Save multiple configurations for quick change of applications

Save multiple groups and descriptions in multiple configuration files for quick changes and for porting custom configurations to multiple machines.

Sensor Modules

We have developed specialty modules for some of the more complex 1Wire devices:

  • DS192X Module
  • DS1922 and DS1923 sensors incorporate 8kb of onboard memory and programmed interval sampling of Temperature (DS1922L, DS1992T, DS1922E) and Temperature and Humidity (DS1923), with first-in first out recording and programmable resolution.

    Our DS192X module allows recording and export of multiple sensor data at once (dependent on button fixture), as well as programming for mission control. Built-in examples demonstrate this functionality for build of custom applications. A standalone executable is on the way for non-LabVIEW users, and is compilable for users with LabVIEW.

  • Memory Module
  • Our memory module allows access to the full feature set of function for Dallas/Maxim memory and combination memory/sensor devices listed below. The memory module also includes our Memory Utility, a standalone application for read/write of 1Wire memory devices.

    • DS2430A (chip), DS1971 (iButton): 256-bit read/write memory iButton
    • DS2431 (chip), DS1992 (iButton) : 1kb read/write memory iButton
    • MAX31826 : Temperature sensor with 1kb EEPROM (full sensor read and EEPROM read/write)
    • DS28EC20 : 20kb EEPROM read/write EEPROM (full EEPROM read/write command set)
    • DS1996 (iButton) : 64kb read/write memory

DS192X Control Panel

We developed the DS192X module for a customer that wanted to read/write ten devices with a single button click, both to export data, set device parameters, and send devices on missions. Even better, the application can perform all of these operations on a mix of DS1922 and DS1923 devices at the same time, converting controls as needed. Use one control panel to program, read/write data, and mission all devices at the same time!

We built our Control Panel application on top of our LabVIEW toolkit to show how to use it, and decided it should be an example for those using LabVIEW. As such, you can get into the block diagram and see how it works and how you might like to modify it. It's a great way to get a jump start on your acquisition, viewing, and storage application - or just use it as it is!

We also built it as a standalone executable that only requires LabVIEW RunTime (free). You can download it with the suite of executables at right. Click the Red Download Trial Button and take it for a spin. Also see our detailed description on the DS192X module section below..

DS192X Gallery

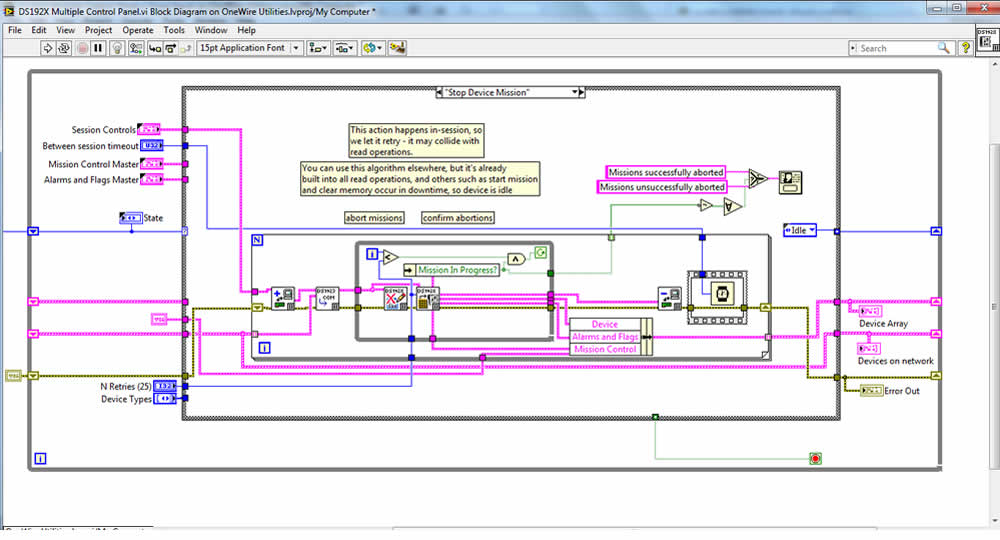

Block diagrams

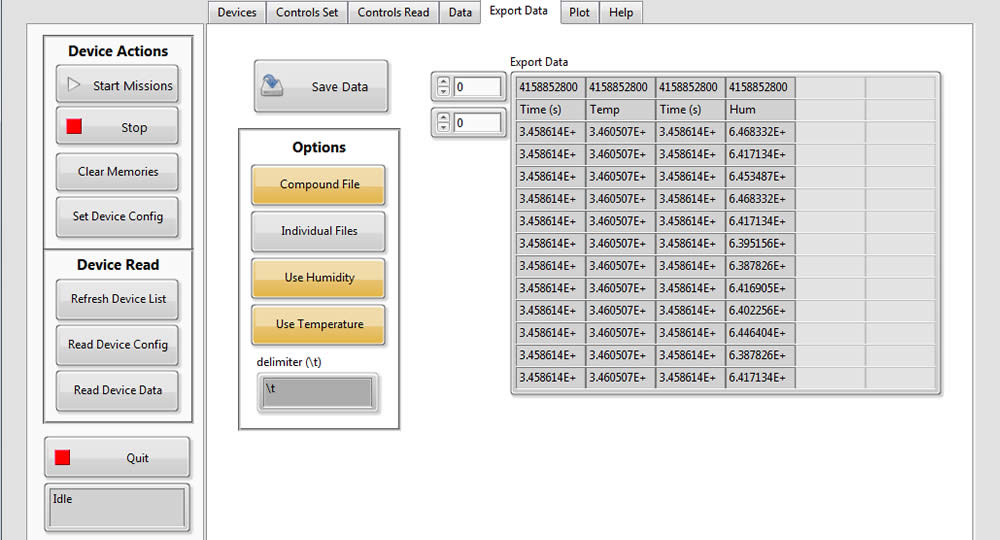

Full Data Exposure

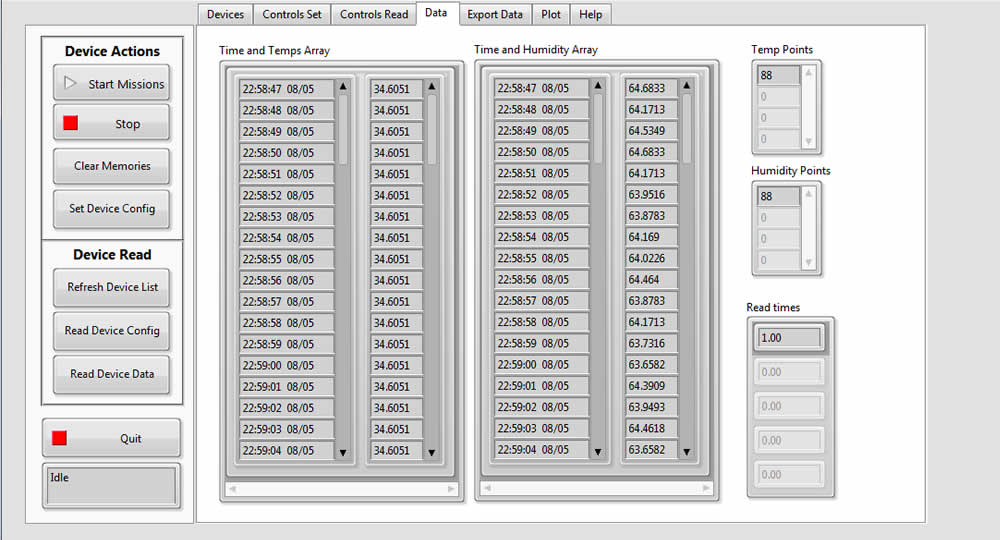

Data Viewer

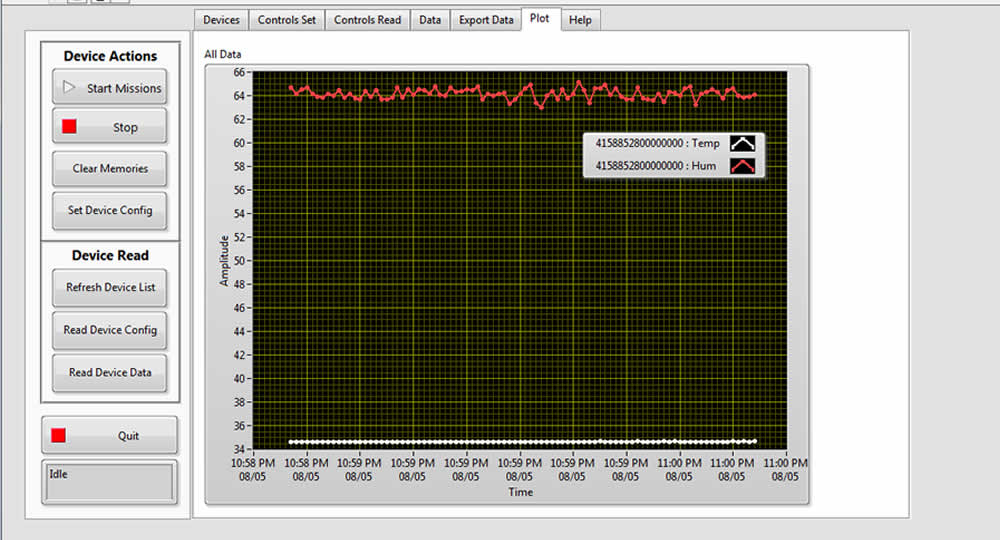

Data Plotting

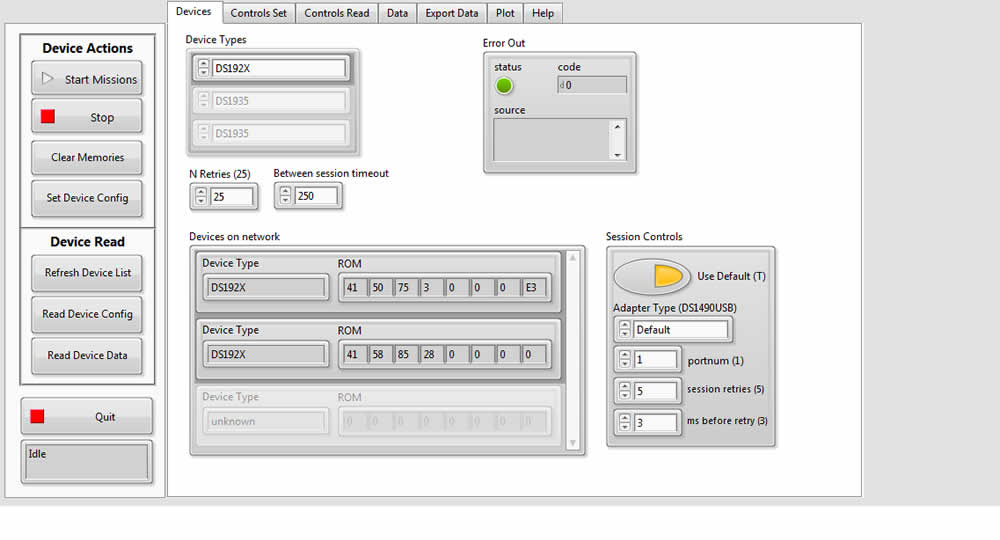

Device Listing

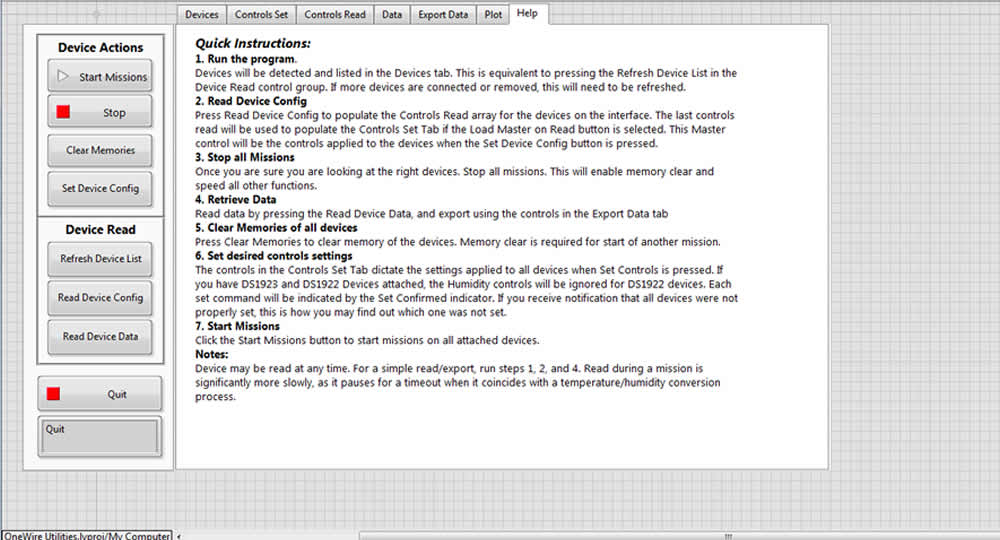

Help
